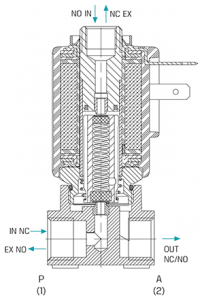

GEM-A-Solenoid-3/2 way
3/2 way Normally Closed, Normally Open Solenoids are available as 24V AC or 9-12V DC Latch with 1/8” NPT&BSPT and ¼” NPT&BSPT connections sizes. Maximum working pressure are PN16&PN25. It is suitable to use at potable water apps, irrigation projects and fire fighting.
Technical Data
Technical Data
| Function | 3/2 way NC, NO |
| Ports Size | ⅛” and ¼” BSP &NPT |
| Orifice Size | 1.6 mm |
| Pressure Range | 16 bar – 25 bar |
Temperature Range | 5℃ to 50℃ |
Materials in contact | Manual Override: Plastic, Brass screw or Brass finger knob, SST for SST valves Main Valve: Brass or SST AISI 316 Solenoid Operator: SST AISI 300&400 Series Seals: NBR, EPDM |
| Media | Water |
| Coil Voltage | 9-12V DC Latch, 24VAC |
| Standard Protection Class | *Option: IP68 |
