RC-Remote Control Valve
Armaş “RC” model remote control valves are activated by hydraulic or pneumatic pressure command with the relay valve on main valve. The standard valve is normally closed The valve opens when the pressure signal received. Remote control valves are used in many automation systems.
CONTROL SYSTEM COMPONENTS
PURCHASE SPECS
QUICK SIZING

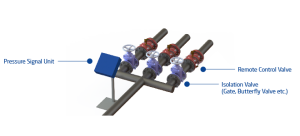

TYPICAL APPLICATION
CONTROL SYSTEM COMPONENTS
1-Accelerator Relay; 2-Ball Valves; 3-In-line Finger Filter
PURCHASE SPECS
The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts such as stem, bearing and seat exist in main valve body. The valve position will be controlled by a hand operated selector valve.
QUICK SIZING
Valve size same as main line or one size smaller. Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec)
TYPICAL APPLICATION
