PS-Pressure Sustaining Valve
Armaş “PS” model pressure sustaining hydraulic control valve maintains valve upstream pressure value constant. Valve is opened when line pressure reaches the preset pressure level. It ensures that pump motor within pumping systems will start without load. It also prevents positive pressure waves caused by pump during start-up. Valve controls upstream pressure value continuously and keeps it at a constant value without being affected from changes in flow rate. When no flow exists, it closed by itself fully tight.
AVAILABLE MODELS
CONTROL SYSTEM COMPONENTS
AVAILABLE MODELS
Models | Features | 55 | 57 | ||
![]() | ![]() | ![]() | |||
| Connection | Threaded | Flanged | |||
| Material | Glass Reinforced Polyamide | Glass Reinforced Polyamide | |||
| Body Type | Globe | Globe | |||
| Max. Working Pressure | 10 bar (145 psi) | 10 bar (145 psi) | |||
| Available Sizes | inch | mm | inch | mm | |
| 1½” | Ø40 | 4″ | Ø100 | ||
| 2″ | Ø50 | ||||
| 2½” | Ø65 | ||||
| 3″ | Ø80 | ||||
| 4″ | Ø100 | ||||

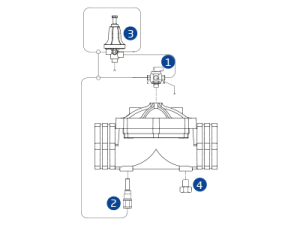

CONTROL SYSTEM COMPONENTS
1-3-way selector valve; 2-In-line Finger Filter; 3-Plastic Pilot; 4-Plug;
